Image Sensor: 1/2.8” 2-Megapixel Progressive Scan CMOS Sensor.
Max. Resolution: 1920 × 1080 (1080p Full HD).
Lens: 4mm @ F1.6
- Viewing Angle: $10 0^{\circ}$ (Diagonal), $8 5^{\circ}$ (Horizontal), $4 6^{\circ}$ (Vertical). This provides a good wide view of a crib or play area.
Minimum Illumination: 0.1 lux.
Day & Night: IR-cut filter with auto-switching.
DNR (Digital Noise Reduction): 3D DNR.
Night Vision: Up to 5 m (16 ft). A key feature for a baby monitor is its “Zero visible infrared lights” night vision, meaning the IR LEDs are not visible, ensuring your baby’s sleep isn’t disturbed by red glowing lights.

Video & Audio:

Video Compression: H.265 / H.264. H.265 is more efficient for storage and bandwidth.
Frame Rate: 15fps. Self-Adaptive during Network Transmission.
Video Bit Rate: Full HD; Hi-Def; Standard. Adaptive Bit Rate.
Audio Bit Rate: Self-adaptive.
Max. Bitrate: 1 Mbps.
Two-Way Talk: Supported, with a built-in microphone and loudspeaker, allowing you to soothe your baby or communicate with them.

Network:

Special Baby Monitoring Functions:

Crying Detection: AI-powered detection that specifically identifies and alerts you when your baby is crying.
Out-of-Crib (Baby Leaving) Detection: Alerts you if the baby moves out of a defined safe area (e.g., the crib).
Baby Activity Detection (Smart Human Detection): Detects general baby movement and activity.
Auto-play Music: Can automatically play soothing music (pre-set tunes) upon crying detection to help calm the baby.
Auto-play Soothing Music: You can manually play soothing music from the app.
Baby-Safe Design: Made with child-safe materials and has no sharp edges.

Other Functions & Features:

Smart Alarm: Supports general smart alarms based on the detection features mentioned above.
Visual Baby Journal: Helps you capture and save precious moments.
Picture-in-Picture Mode: Allows multitasking while monitoring.
Up to 8x Zoom: Digital zoom to look closely at details.
Flexible Installation: Comes with a magnetic base and a 360° adjustable bracket for versatile placement.
Smart Integration: Compatible with Google Assistant and Amazon Alexa for voice control.

Storage:

General:

Operating Conditions: $- 1 0^{\circ} C$ to $4 5^{\circ} C$ ( $1 4^{\circ} F$ to $11 3^{\circ} F$ ), humidity 95% or less (Non-condensing). This is an indoor camera.
Power Supply: DC 5V / 2A (Power adapter usually purchased separately).
Battery Capacity: 2000 mAh.
- Battery Life: Advertised as “All-Night Battery” and up to 7 hours in “Always-On Mode” (lab test results). Actual battery life will vary significantly based on usage (e.g., frequent crying detection, live viewing).
Dimensions (approximate, varies slightly between Rabbit and Bear versions):
- Rabbit Version: $249 \times 50 \times 67 mm$ ( $9.80 \times 1.97 \times 2.64 inch$ )
- Bear Version: $240 \times 50 \times 67 mm$ ( $9.44 \times 1.97 \times 2.64 inch$ )
Net Weight (approximate):
- Rabbit Version: 118 g (4.16 oz)
- Bear Version: 221 g (7.80 oz)
Certifications: CE / FCC / UL / WEEE / RoHS / REACH / UKCA

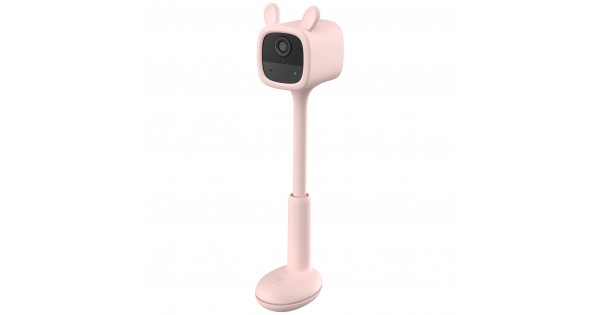

EZVIZ BM1 – Battery-Powered Baby Monitor
