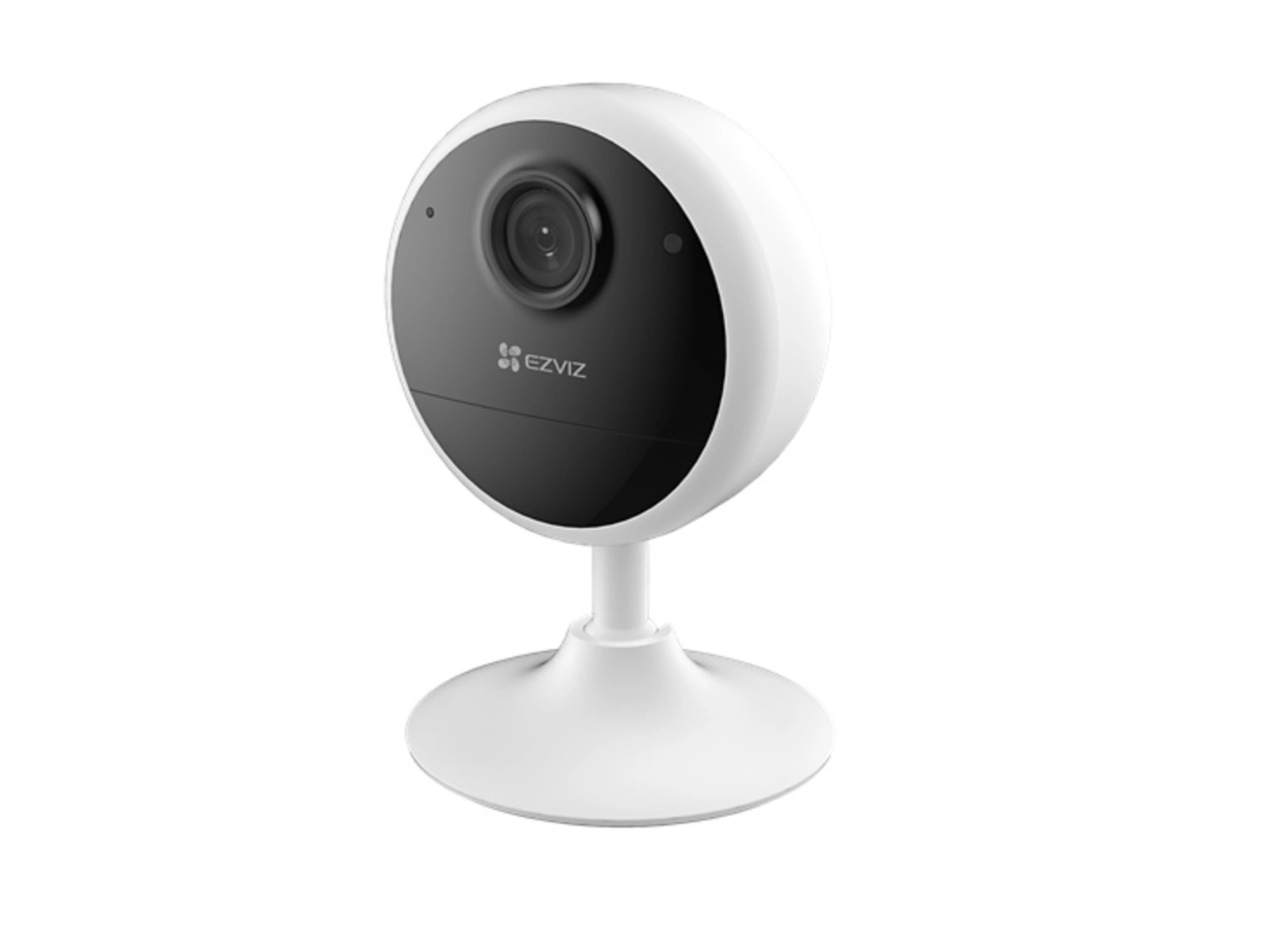

EZVIZ CB1 – Wi-Fi Smart Home Battery Camera

• Image Sensor: 1/3″ 2-Megapixel Progressive Scan CMOS Sensor.
• Max. Resolution: 1920 × 1080 (1080p Full HD).
• Lens: 2.8mm @ F2.2
  • Viewing Angle: 113∘ (Diagonal), 90∘ (Horizontal), 50∘ (Vertical). This provides a good wide view for indoor spaces.
• Minimum Illumination: 0.1 Lux.
• Night Vision: Up to 5m (16 ft) IR (Infrared) Night Vision. This is typical for indoor cameras.
• DNR (Digital Noise Reduction): 3D DNR.

Video & Audio:

• Video Compression: H.265 / H.264. H.265 offers more efficient storage and bandwidth usage compared to H.264.
• Frame Rate: Max. 15fps; Self-adaptive during network transmission.
• Max. Bitrate: 1 Mbps.
• Two-Way Talk: Supported, with a built-in microphone and loudspeaker, allowing for real-time communication.

Network:

• Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n (2.4 GHz frequency range).
• No Wired Network Port: This camera is designed for purely wireless data connectivity.
• Wi-Fi Pairing: AP pairing (for easy setup).
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK.

Functions & Features:

• Battery-Powered: Built-in 1,600 mAh rechargeable battery.
  • Battery Life: Up to 40 days on a full charge (actual battery life varies based on usage, motion detection frequency, live view, etc.).
• Smart Alarm: Supports smart human motion detection, which helps reduce false alerts from pets or inanimate objects.
• Customized Alert Area: Allows you to define specific zones for motion detection.
• Sleep Mode: For privacy protection, you can activate a sleep mode via the app, which pauses all camera activity.
• Flexible Installation: Features a magnetic base and a 360° adjustable bracket, allowing for versatile placement on various surfaces, including walls, ceilings (supports image flipping for ceiling mount), or metallic surfaces.
• Smart Integration: Compatible with Google Assistant and Amazon Alexa for voice control.

Storage:

• Local Storage: Supports microSD card (up to 512 GB). This is a generous capacity for local storage.
• Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required).

General:

• Operating Conditions: −10∘C to 45∘C (14∘F to 113∘F), Humidity 95% or Less (Non-condensing). Note: This is an indoor camera, not rated for outdoor use.
• Power Supply: DC 5V/1A (via USB, power adapter typically purchased separately).
• Dimensions: $67\times 63\times 105\text{ mm}$ ($2.64\times 2.48\times 4.13\text{ inch}$).
• Bare Weight: 135 g (4.76 oz).
