Image Sensor: 1/2.8″ Progressive Scan CMOS (some versions might specify 1/3″ Progressive Scan CMOS, but 1/2.8″ is common for the 2K model).
Max. Resolution: $2304 \times 1296$ (2K or 3MP equivalent). This provides a clearer and more detailed image compared to 1080p. Note that some models are also referred to as “2K+” with a resolution of $2560 \times 1440$ (4MP), so it’s always good to check the specific product listing.
Lens:
- 4mm @ F1.6: Common option, with a viewing angle of: $4 6^{\circ}$ (Vertical), $8 9^{\circ}$ (Horizontal), $10 4^{\circ}$ (Diagonal). This lens provides a wider view.
- 6mm @ F1.6: Also available, with a viewing angle of: $2 8^{\circ}$ (Vertical), $5 2^{\circ}$ (Horizontal), $6 0^{\circ}$ (Diagonal). This lens offers a more zoomed-in perspective.
PT (Pan & Tilt) Angle:
- Pan: $35 0^{\circ}$ (horizontal rotation, offering wide coverage).
- Tilt: $8 0^{\circ}$ (vertical movement).
Minimum Illumination: 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR.
Night Vision:
- Black & White Night Vision Distance: Up to 30m (98 ft).
- Color Night Vision: Yes, the H8c 2K often features full-color night vision enabled by built-in spotlights. It also typically has a “Smart Night Vision” mode that automatically switches to color upon human motion detection.
WDR (Wide Dynamic Range): Digital WDR.
DNR (Digital Noise Reduction): 3D DNR.

Video & Audio:

Video Compression: H.265 / H.264 (H.265 Main Profile for more efficient video storage and lower bandwidth usage).
Frame Rate: Max: 30fps; Self-Adaptive during network transmission.
Video Bit Rate: Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive.
Max. Bitrate: Up to 3 Mbps (some 2K+ or 4MP versions might go up to 4 Mbps).
Two-Way Talk: Supported, with a built-in microphone and speaker, allowing for real-time communication.

Network:

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n (2.4 GHz frequency range).
Wired Network: RJ45 $\times$ 1 (10M / 100M Adaptive Ethernet Port). This provides an option for a more stable wired connection if Wi-Fi is unreliable.
Wi-Fi Pairing: AP pairing.
Security: WPA-PSK / WPA2-PSK.
Dual Antennas: Often features dual external antennas for improved Wi-Fi signal strength and stability.

Functions & Features:

Smart Alarm: AI-Powered Human Shape Detection is a key feature, accurately identifying human figures and reducing false alarms from pets, cars, or other moving objects.
Auto-Tracking: The camera can automatically track detected human movement within its field of view.
Customized Alert Area: Allows you to define specific zones for motion detection, focusing surveillance on critical areas.
One-Click Return to Pre-Set Directions: You can set up to 12 preset locations in the EZVIZ app, and the camera can return to any of these positions with a single tap.
Active Defense: Features a built-in siren and/or spotlights that can be activated to deter intruders upon detection.
General Functions: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark.
Smart Integration: Compatible with voice assistants like Amazon Alexa and Google Assistant.

Storage:

General:

Operating Conditions: $- 3 0^{\circ} C$ to $5 0^{\circ} C$ ( $- 2 2^{\circ} F$ to $12 2^{\circ} F$ ), humidity 95% or less (non-condensing).
IP Grade: Weatherproof Design (suitable for outdoor use).
Power Supply: DC 12V / 1A.
Power Consumption: MAX. 12W.
Dimensions: $100.05 \times 129.19 \times 149.75 mm$ ( $3.94 \times 5.09 \times 5.9 inch$ ).
Net Weight: Approximately 435 g to 516 g (depending on specific model variant).

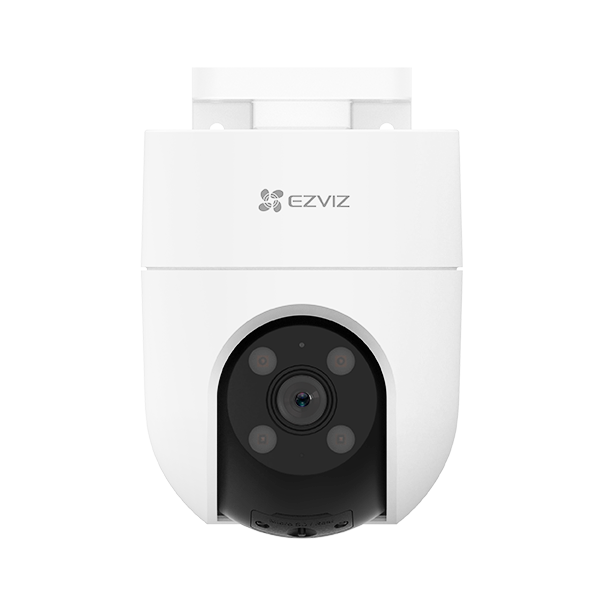

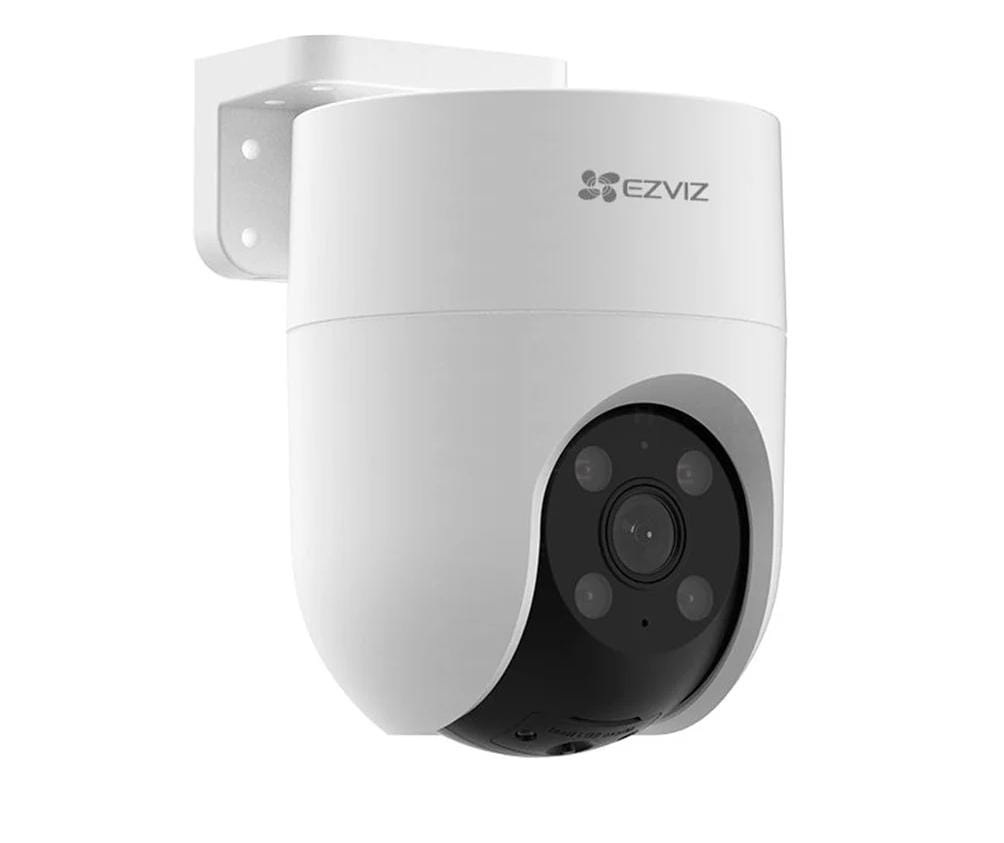

EZVIZ H8c 2K – Pan & Tilt Wi-Fi Camera
