- Model: CS-H90-R100-8H44WKFL
- Max Resolution: 2K+ (2880 × 1620). This is a key feature, indicating a higher resolution than standard 2K (2560×1440). Some sources might still list it as 2560×1440, but the official EZVIZ product page for the H90 Dual 2K+ confirms 2880×1620.
- Camera & Lenses:
- Dual Lenses: Equipped with two independent lenses for both wide-angle and close-up views.
- Top Lens: 2.8mm @ F1.6, with a field of view of Diagonal 110°, Horizontal 96°, Vertical 54°. This lens is designed for broader coverage.
- Bottom Lens: 6mm @ F1.6, with a field of view of Diagonal 60°, Horizontal 52°, Vertical 28°. This lens provides a more zoomed-in and focused view.
- Image Sensor: 1/3″ Progressive Scan CMOS.
- PT Angle:
- Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle).
- Bottom Lens: Pan: 324°, Tilt: 90°. The camera utilizes three motors for smooth dual rotation.
- Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR.
- Night Vision:
- IR Night Vision: Up to 30 m (98 ft) (black and white).
- Color Night Vision: Up to 40 m (131 ft) when both lenses point in the same direction, utilizing four built-in spotlights.
- WDR: Digital WDR (Wide Dynamic Range).
- DNR: 3D DNR (Digital Noise Reduction).
- Dual Lenses: Equipped with two independent lenses for both wide-angle and close-up views.
- Video & Audio:
- Video Compression: H.265 / H.264 (H.265 Main Profile). H.265 offers more efficient compression, saving storage space and bandwidth.
- Frame Rate: Max: 15fps; Self-adaptive during network transmission.
- Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
- Audio Bit Rate: Self-Adaptive.
- Two-way Talk: Supported, allowing communication with people near the camera. You can also pre-record 10-second voice messages to play automatically upon human detection.
- Network:
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n (2.4 GHz frequency range).
- Security: WPA-PSK/WPA2-PSK.
- Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port).
- Dual Antennas: For enhanced and stable Wi-Fi connectivity.
- Functions & Features:
- Smart Alarm: AI-powered human shape detection and vehicle shape detection, along with standard motion detection. This helps reduce false alarms.
- Auto Tracking: Supports auto-tracking between both lenses using a co-detection system, ensuring continuous monitoring of detected subjects.
- Customized Alert Area: Allows you to define specific areas for motion detection.
- Preset Locations: You can set up specific points for the camera to monitor.
- Active Defense: Features a siren and strobe light to deter intruders.
- General Functions: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark.
- Smart Integration: Compatible with Google Assistant and Amazon Alexa for voice control.
- Patrol Modes: Two customizable patrol modes for automated monitoring.
- One-Tap Control: Allows for easy switching between wide and close-up views.
- Storage:
- Local Storage: Supports microSD card (max. 512 GB).
- Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required).
- General:
- Operating Conditions: -30°C to 50°C (-22°F to 122°F), Humidity 95% or less (non-condensing).
- IP Grade: Weatherproof Design, rated at IP65 (protected against dust and low-pressure water jets). Some sources also mention IP67, but IP65 is more commonly cited by EZVIZ for this model.
- Power Supply: DC 12V / 1.5A.
- Power Consumption: Max. 18W.
- Dimensions: 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch).
- Net Weight: 723 g (25.51 oz).

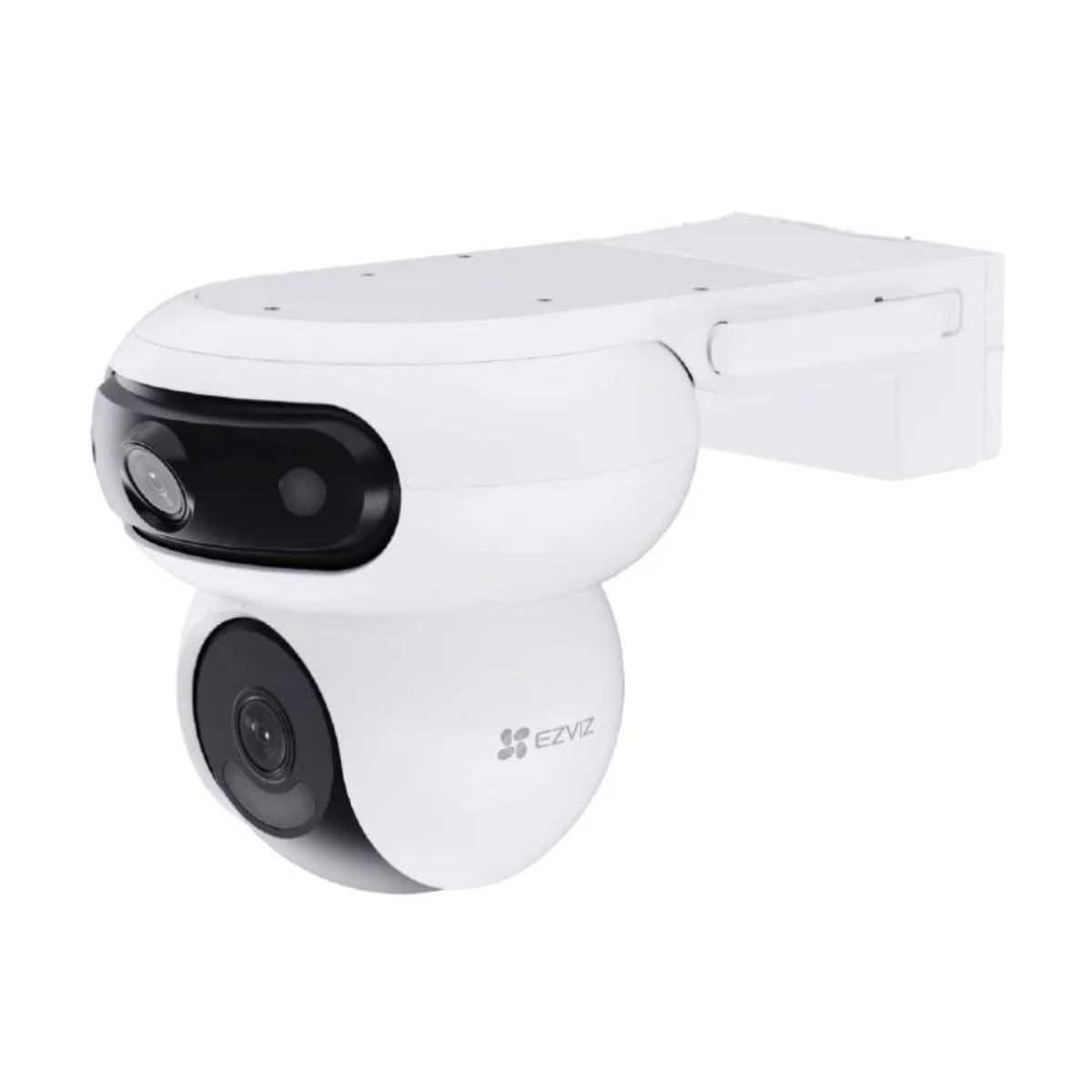

EZVIZ H90 Dual 2K+ Dual-Lens Pan & Tilt Wi-Fi Camera
