Model: CS-C8PF (1080P)
Image Sensor: Dual-1/2.7″ Progressive Scan CMOS.
Dual Lenses:
- Wide-angle Lens: 2.8mm @ F1.6, providing a broad field of view for general coverage.
- Telephoto Lens: 12mm @ F1.6, designed for zoomed-in details.
Max Resolution: 1080p (1920 × 1080). While it offers advanced zoom, the base resolution is Full HD.
PT (Pan & Tilt) Angle:
- Pan: $34 0^{\circ}$ (horizontal rotation)
- Tilt: $8 0^{\circ}$ (vertical movement)
Minimum Illumination: 0.05Lux @ (F1.6 AGC ON), 0 Lux with IR.
Night Vision:
- IR (Black & White) Night Vision: Up to 30m (98 ft).
- The C8PF relies on its dual lenses for enhanced visibility, but it does not feature the color night vision with spotlights found on some other C8 models (like the C8C or C8W Pro).
WDR (Wide Dynamic Range): Digital WDR.
DNR (Digital Noise Reduction): 3D DNR.
BLC (Backlight Compensation): Supports.

Video & Audio:

Video Compression: H.265 / H.264 (H.265 Main Profile for efficient storage).
Frame Rate: Max. 15fps; self-adaptive during network transmission.
Video Bit Rate: Full HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive.
Max. Bitrate: 2Mbps.
Two-Way Talk: Yes, it has a built-in microphone and speaker, allowing for two-way communication.

Network:

Functions & Features:

Intelligent Dual Lenses: The standout feature, combining a wide-angle and telephoto lens.
Picture-in-Picture Display Mode: Allows you to view the wide-angle overview and a zoomed-in detail from the telephoto lens simultaneously on your screen.
8x Mixed Zoom: Achieves an impressive 8-times zoom by combining 4x optical zoom (from the 12mm telephoto lens) and digital zoom. This enables detailed close-ups without significant blurring.
AI-Powered Human Shape Detection: Intelligent detection of human figures to minimize false alarms.
360° Panoramic Coverage: Achieved through its pan and tilt capabilities.
Customized Alert Area: Allows you to define specific zones for motion detection.
General Functions: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark.

Storage:

Local Storage: MicroSD card slot (supports up to 512GB), which is a larger capacity than many other models.
Cloud Storage: EZVIZ CloudPlay storage (subscription required).

General:

Operating Conditions: $- 3 0^{\circ} C$ to $6 0^{\circ} C$ ( $- 2 2^{\circ} F$ to $14 0^{\circ} F$ ), Humidity 95% or less (non-condensing).
IP Grade: Weatherproof design (suitable for outdoor use, typically IP65 rated).
Power Supply: DC 12V / 1A.
Power Consumption: MAX. 12W.

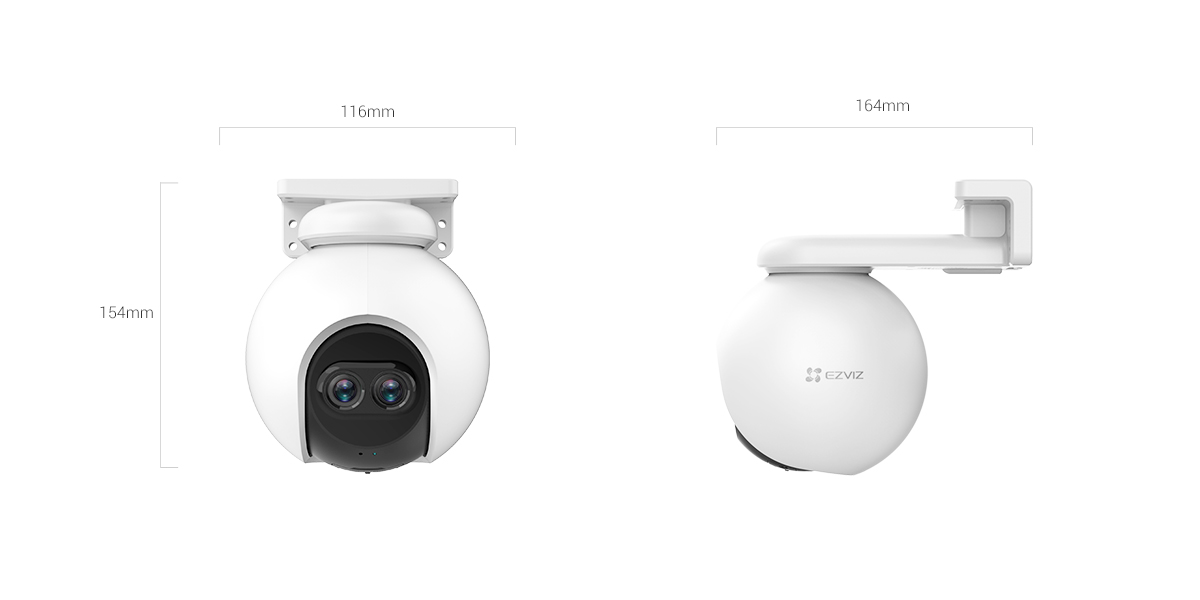

Dimensions: $154 \times 116 \times 164 mm$ ( $6.06 \times 4.57 \times 6.46 inch$ ).
Net Weight: 578 g (20.39 oz).

EZVIZ C8PF – Dual-Lens Pan & Tilt Wi-Fi Camera
