Triple Lenses: This is the most unique feature. It integrates three separate lenses to provide comprehensive viewing angles and zoom capabilities.
- Image Sensor: 1/3” Progressive Scan CMOS * 3 (indicating three separate image sensors for each lens).
- Lenses:
  - 2.8mm @ F1.6: Wide-angle lens, offering a broader view.
    - Viewing angle: $5 4^{\circ}$ (Vertical), $9 6^{\circ}$ (Horizontal), $11 0^{\circ}$ (Diagonal).
  - 6mm @ F1.6: Mid-range lens, providing a balanced view.
    - Viewing angle: $2 8^{\circ}$ (Vertical), $5 2^{\circ}$ (Horizontal), $6 0^{\circ}$ (Diagonal).
  - 12mm @ F1.6: Telephoto lens, designed for detailed zoomed-in views.
    - Viewing angle: $1 4^{\circ}$ (Vertical), $2 5^{\circ}$ (Horizontal), $2 9^{\circ}$ (Diagonal).
Max. Resolution: $2560 \times 1440$ (2K+ or 4MP) for each lens. This provides clear and sharp images.
PT (Pan & Tilt) Angle:
- Pan: $34 0^{\circ}$ (horizontal rotation).
- Tilt: $7 0^{\circ}$ (vertical movement).
Minimum Illumination: 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR.
Night Vision:
- Black & White Night Vision Distance: Up to 30m (98 ft).
- Color Night Vision: Yes, it supports color night vision, often enabled by built-in spotlights, providing clear color images in low light.
WDR (Wide Dynamic Range): Digital WDR.
DNR (Digital Noise Reduction): 3D DNR.
BLC (Backlight Compensation): Supported.

Video & Audio:

Video Compression: H.265 / H.264 (H.265 Main Profile for excellent storage efficiency).
Frame Rate: Self-adaptive during network transmission (typically around 15fps).
Video Bit Rate: Quad HD; Full HD; HD adaptive bit rate.
Audio Bit Rate: Self-adaptive.
Two-Way Talk: Supported, with a built-in microphone and speaker, allowing for real-time communication.

Network:

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n (2.4 GHz frequency range).
Wired Network: RJ45 $\times$ 1 (10M / 100M Adaptive Ethernet Port). This provides an option for a stable wired connection.
Wi-Fi Pairing: AP pairing.
Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK.

Functions & Features:

12x Mixed Zoom: This is a highlight, combining the optical capabilities of the different lenses with digital zoom for clear close-ups.
AI-Powered Smart Detection:
- AI-Powered Human Shape Detection: Accurately identifies human figures.
- AI-Powered Vehicle Shape Detection: Detects vehicles.
- This minimizes false alarms from other movements.
Auto-Zoom Tracking: The camera can automatically track detected human or vehicle movement and intelligently zoom in to keep the subject clear.
Double Snapshots: When AI-powered human/vehicle detection occurs, it can provide double snapshots (e.g., a wide view and a zoomed view) for more informative alerts.
Two Patrol Modes: Customizable automated patrolling routes for continuous monitoring of specific areas.
One-Click Return to Pre-Set Directions and Zoom Ratio: Allows you to quickly return the camera to a predefined viewing angle and zoom level.
Active Defense: Built-in siren and strobe light to deter intruders.
Customized Alert Area: Allows you to define specific zones for motion detection.
General Functions: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark.
Smart Integration: Compatible with voice assistants like Google Assistant and Amazon Alexa.

Storage:

General:

Operating Conditions: $- 3 0^{\circ} C$ to $5 0^{\circ} C$ ( $- 2 2^{\circ} F$ to $12 2^{\circ} F$ ), Humidity 95% or less (non-condensing).
IP Grade: IP67 (Highly weatherproof design, offering excellent protection against dust and temporary immersion in water, making it very durable for outdoor use).
Power Supply: DC 12 V / 1.5 A.
Power Consumption: Max. 18 W.
Dimensions: $168 \times 112 \times 156 mm$ ( $6.61 \times 4.41 \times 6.14 inch$ ).
Net Weight: 575.7 g (20.31 oz).

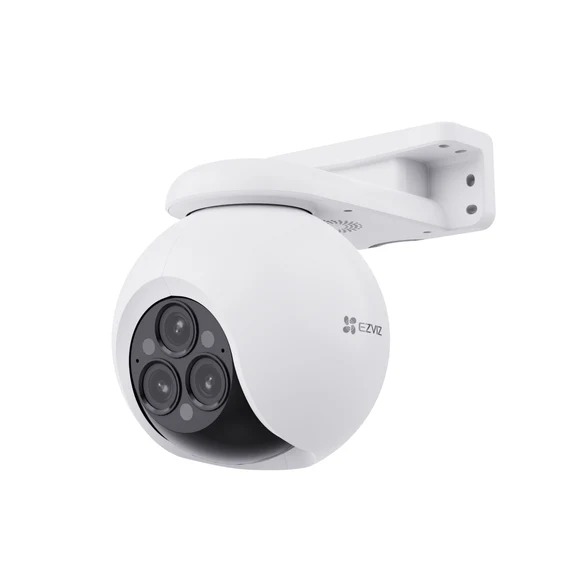

EZVIZ H80f Multi 2K+ – Triple-Lens Smart Home Wi-Fi Camera
