Image Sensor: 1/1.8″ Progressive Scan CMOS. This is a larger sensor than many other EZVIZ models, which generally translates to better light gathering and image quality.
Max. Resolution: 2K+ (2560 × 1440). This equates to 4 Megapixels, providing sharp and clear video.
Lens: 4mm @ F1.0. The F1.0 aperture is exceptionally wide, allowing a significant amount of light to reach the sensor, which is crucial for its superior night vision.
- Field of View: $4 8^{\circ}$ (vertical), $9 2^{\circ}$ (horizontal), $10 8^{\circ}$ (diagonal).
PT (Pan & Tilt) Angle:
- Pan: $34 0^{\circ}$ (horizontal rotation, offering extensive coverage).
- Tilt: $7 0^{\circ}$ (vertical movement).
Minimum Illumination: 0.01 Lux @ (F1.0, AGC ON), 0 Lux with IR. The very low lux rating at F1.0 highlights its excellent low-light performance.
Night Vision:
- ColorFULL Night Vision under Ultra-Low Light: This is a key selling point. Thanks to the large F1.0 aperture and advanced sensor, the H8x can capture vivid, full-color images even in near-total darkness, without relying solely on bright spotlights.
- Black & White IR Night Vision: Up to 30m (98 ft) for traditional infrared night vision.
WDR (Wide Dynamic Range): Digital WDR.
DNR (Digital Noise Reduction): 3D DNR.
BLC (Backlight Compensation): Supported.

Video & Audio:

Video Compression: H.265 / H.264 (H.265 Main Profile for highly efficient video storage and lower bandwidth consumption).
Frame Rate: Self-adaptive during network transmission (typically up to 15fps or 30fps depending on settings and network conditions).
Video Bit Rate: Quad HD; Full HD; HD. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive.
Two-Way Talk: Supported, with a built-in microphone and speaker, enabling real-time communication.

Network:

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n (2.4 GHz frequency range).
Wired Network: RJ45 $\times$ 1 (10M / 100M Adaptive Ethernet Port). Offers flexibility for a more stable wired connection if needed.
Wi-Fi Pairing: AP pairing.
Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS.

Functions & Features:

Smart Alarm:
- AI-Powered Human Shape Detection: Intelligently identifies human figures, significantly reducing false alarms.
- AI-Powered Vehicle Shape Detection: Detects vehicles, useful for monitoring driveways or parking areas.
Auto-Zoom Tracking: The camera can automatically track detected human or vehicle movement and intelligently zoom in to capture details.
Patrol Modes: Supports unique patrol modes for automated security checks of predefined viewpoints.
Customized Alert Area: Allows you to define specific zones for motion detection.
General Functions: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark.
Smart Integration: Compatible with voice assistants like Amazon Alexa and Google Assistant.

Storage:

General:

Operating Conditions: $- 3 0^{\circ} C$ to $5 0^{\circ} C$ ( $- 2 2^{\circ} F$ to $12 2^{\circ} F$ ), Humidity 95% or less (non-condensing).
IP Grade: IP65 (Weatherproof Design, protected against dust and low-pressure water jets). Some sources also mention “IP65 + 2h rainstorm” which indicates robust outdoor resilience.
Power Supply: DC 12 V / 1 A.
Power Consumption: Max. 12W.
Dimensions: $167 \times 112 \times 154 mm$ ( $6.57 \times 4.41 \times 6.06 inch$ ).
Net Weight: 607 g (21.4 oz).

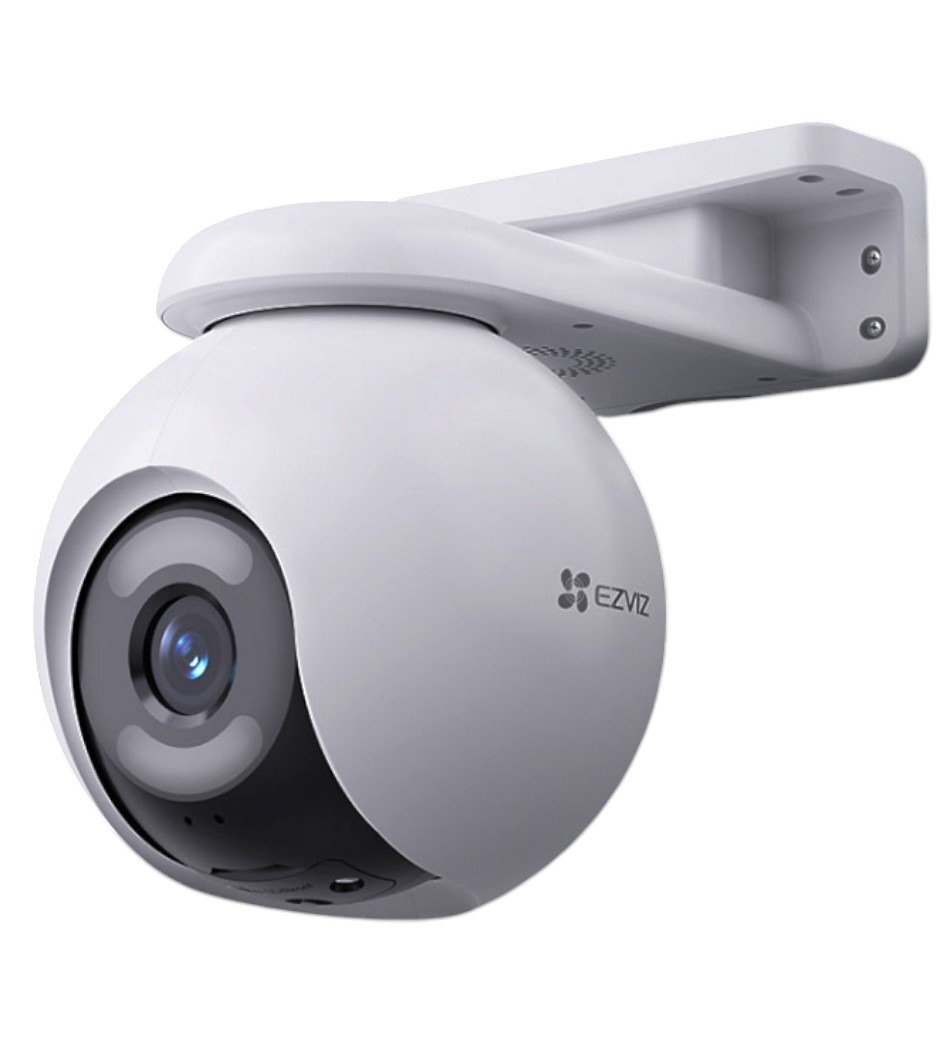

EZVIZ H8x 2K+ – Pan & Tilt Wi-Fi Camera
